April 2009 Rebuild- Teixeira Tech Linkage install, new frame, new shock
After blowing apart the rear shock mount on my last race frame and not knowing why I decided to rebuild with all new parts. Lone Star Racing gave me a great deal on a new 06 geometry race frame built to my specs. They are a great company to deal with. Jim at Motowoz has been begging me to try out a real long travel rear suspension setup via a Teixeira Tech Linkage and custom rear shock so I decided to go for it. The linkage arrived within days of ordering it and Ed Teixeira was great to talk to and he explained everything I wanted to know about his product over the phone. His linkage is designed around the 06+ swingarm too which is great news for me because I have no interest in dropping money on another swing arm.
The AC Racing skidplate is the easist skidplate to modify to fit with this awesome new linkage so I found one of those on ebay for $75 which is half of retail. This skidplate has a bottom piece that will protect the linkage from rocks, unlike other linkages which require you to gut the entire skid plate leaving the linkage exposed. You can see where I marked and cut the linkage in the photos below.
Old skidplate and GT Thunder linkage after 18 months of abuse |

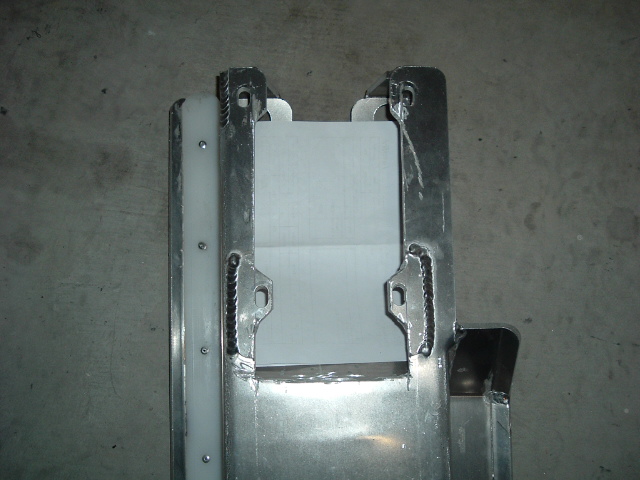

Another brand of skidplate, you can see why it wouldn't fit with the Teixeira Linkage |
Another brand of skidplate, you can see why it wouldn't fit with the Teixeira Linkage |
Another brand of skidplate, you can see why it wouldn't fit with the Teixeira Linkage |
![](../Images/2009/linkage/s/apr%20045.jpg) |
![](../Images/2009/linkage/s/apr%20046.jpg) |
![](../Images/2009/linkage/s/apr%20047.jpg) |
![](../Images/2009/linkage/s/apr%20048.jpg) |

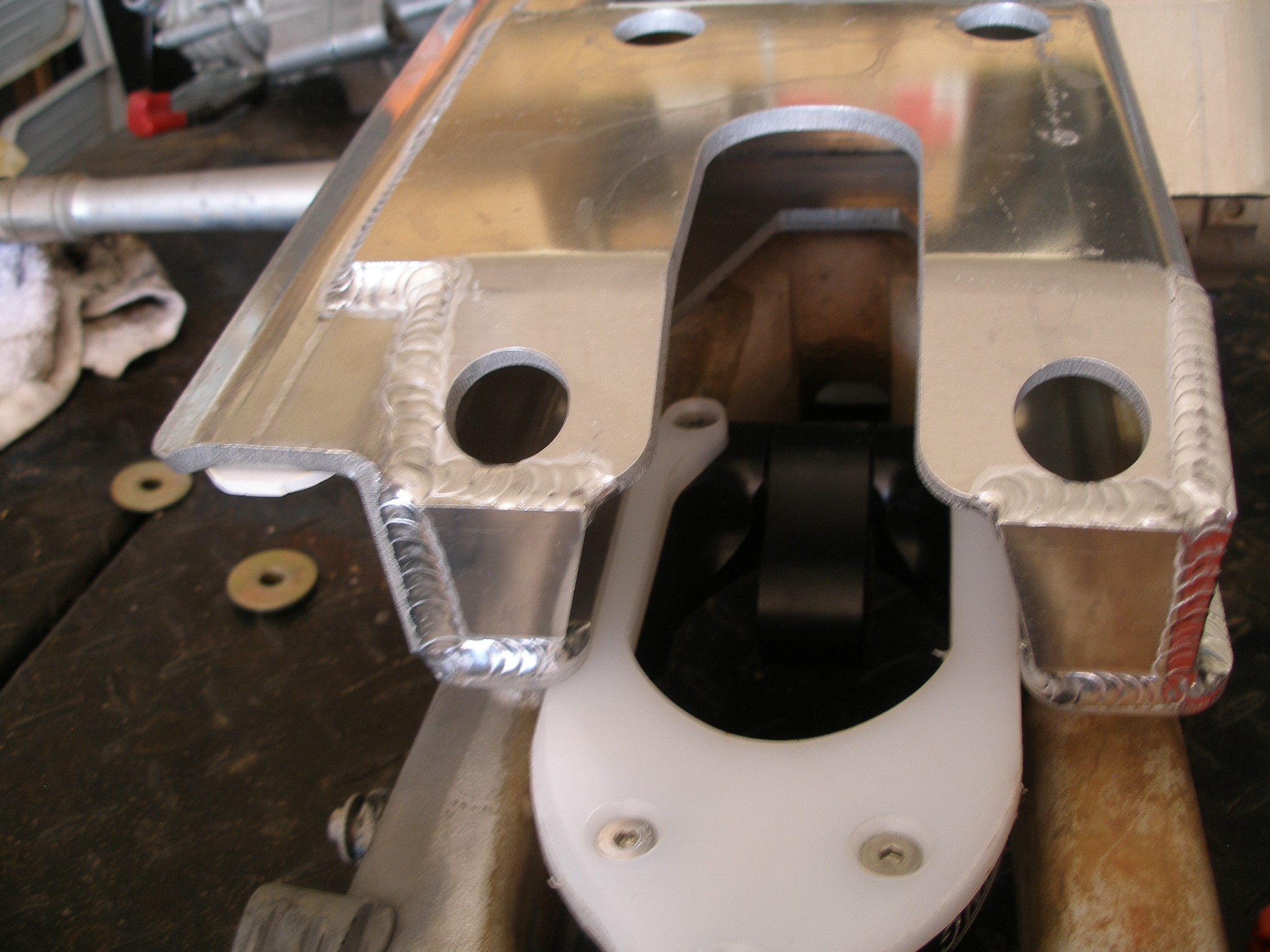

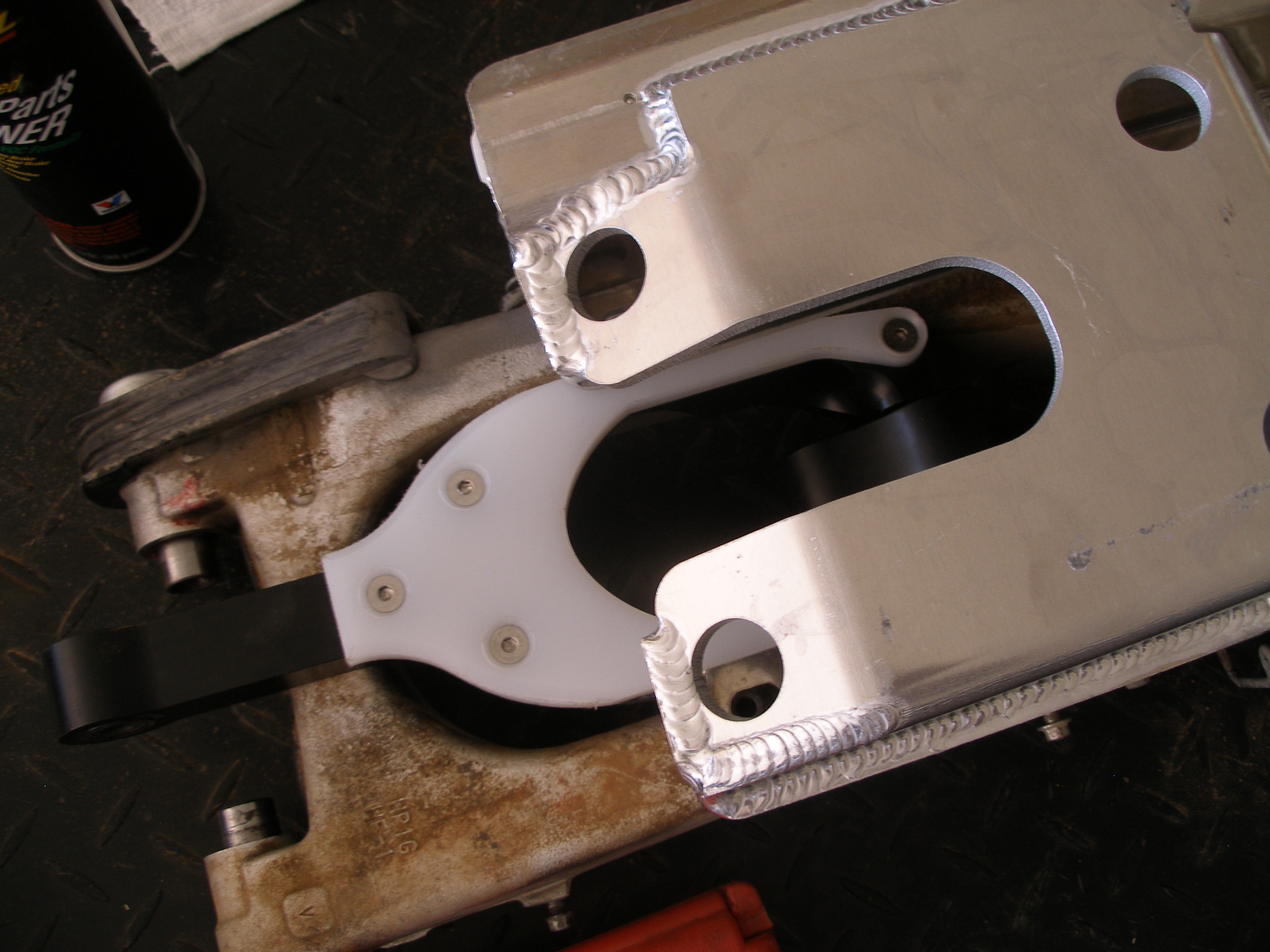

AC Racing Skidplate, test fitting linkage with optional guard. |
|
Un Cut skidplate marked up for cutting. |
|
![](../Images/2009/linkage/s/P4260014.JPG) |
![](../Images/2009/linkage/s/P4260015.JPG) |
![](../Images/2009/linkage/s/P4260016.JPG) |
![](../Images/2009/linkage/s/P4260017.JPG) |
Final result, all cut up (by Doug Bergstrom) |

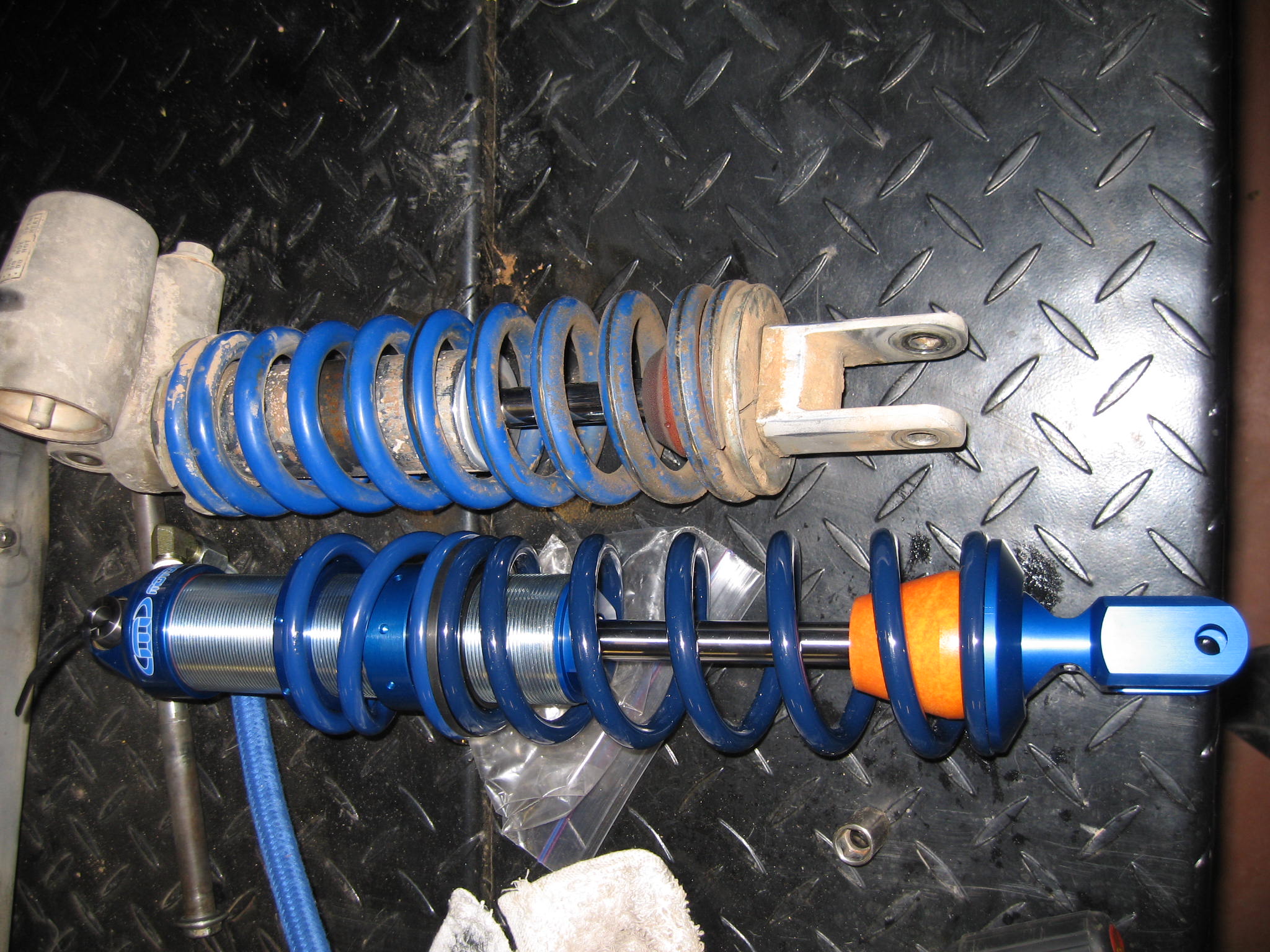

Stock rear shock vs Motowoz LT shock. 17.75" eye to eye, 5.75" shaft travel |

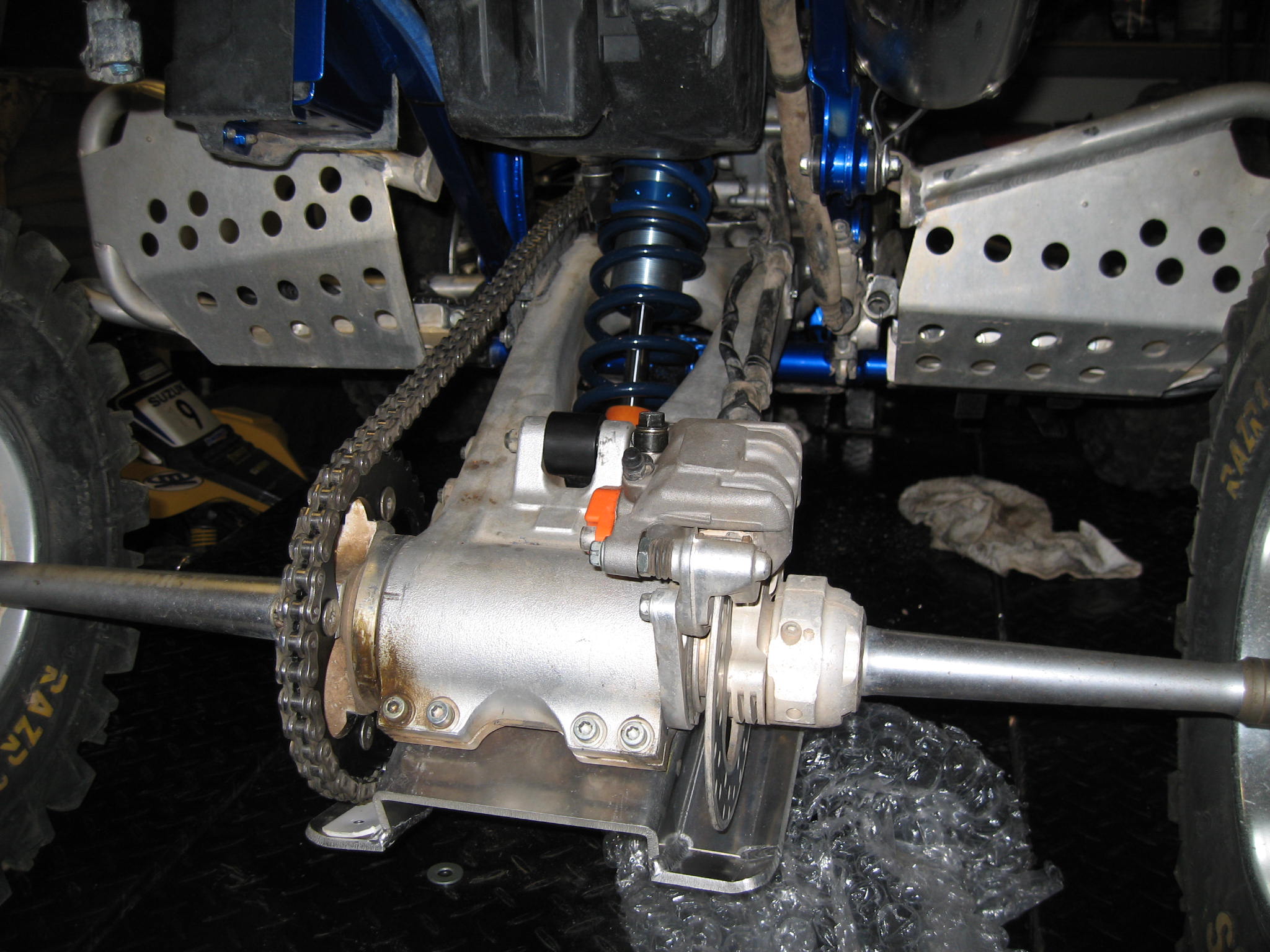

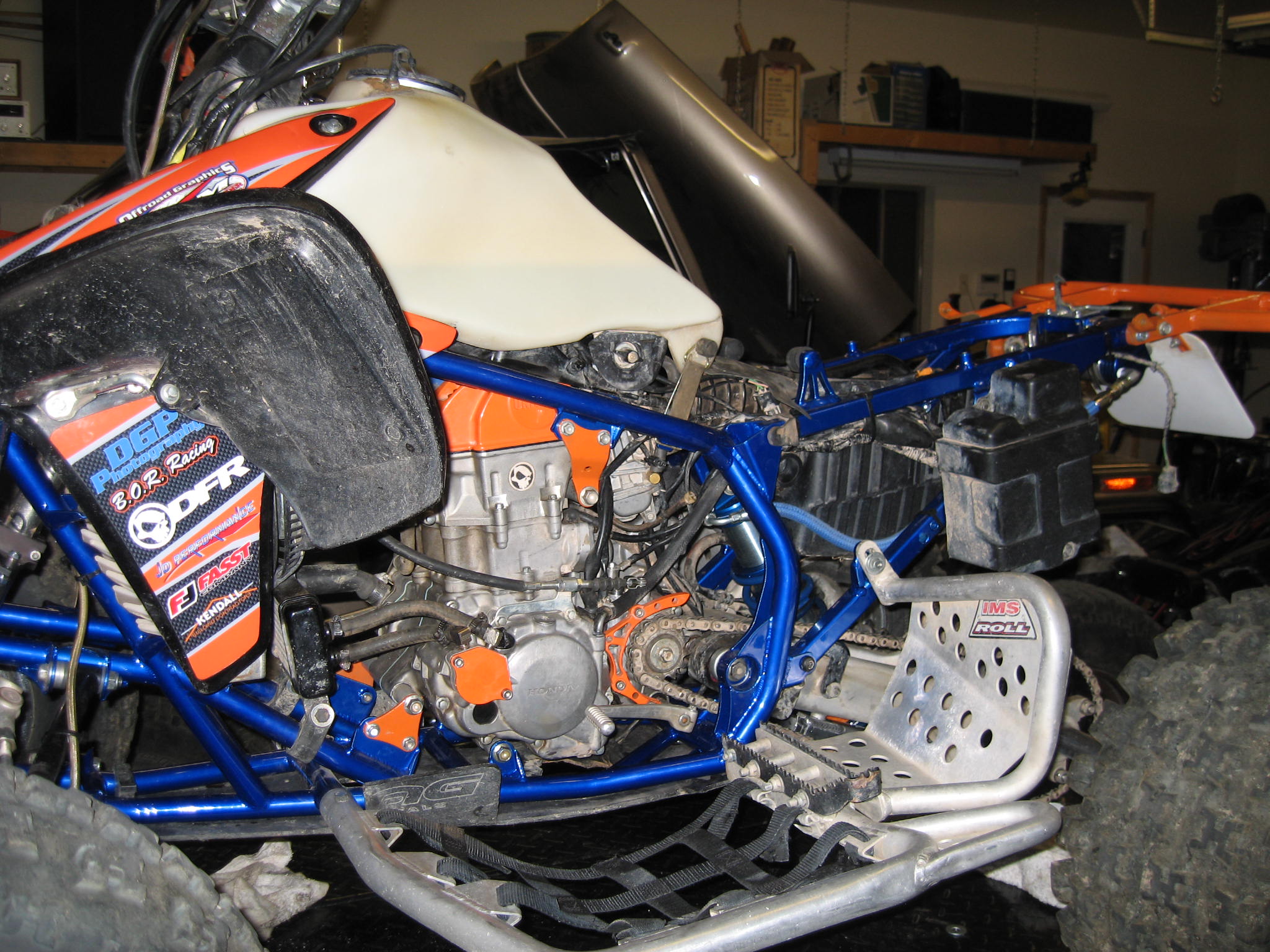

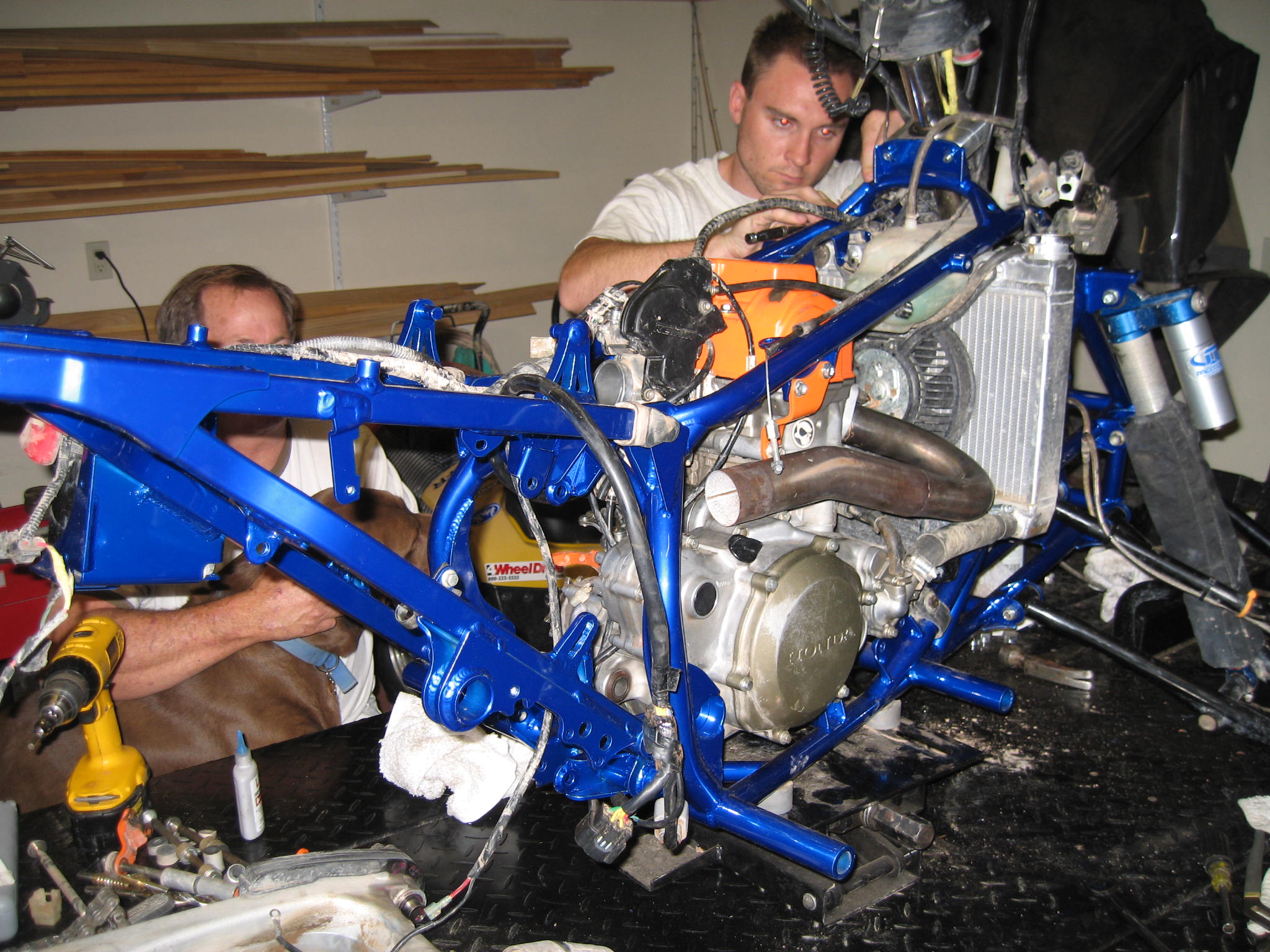

Assembling Quad |
|
![](../Images/2009/linkage/s/cut_s.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20030.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20031.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20033.jpg) |

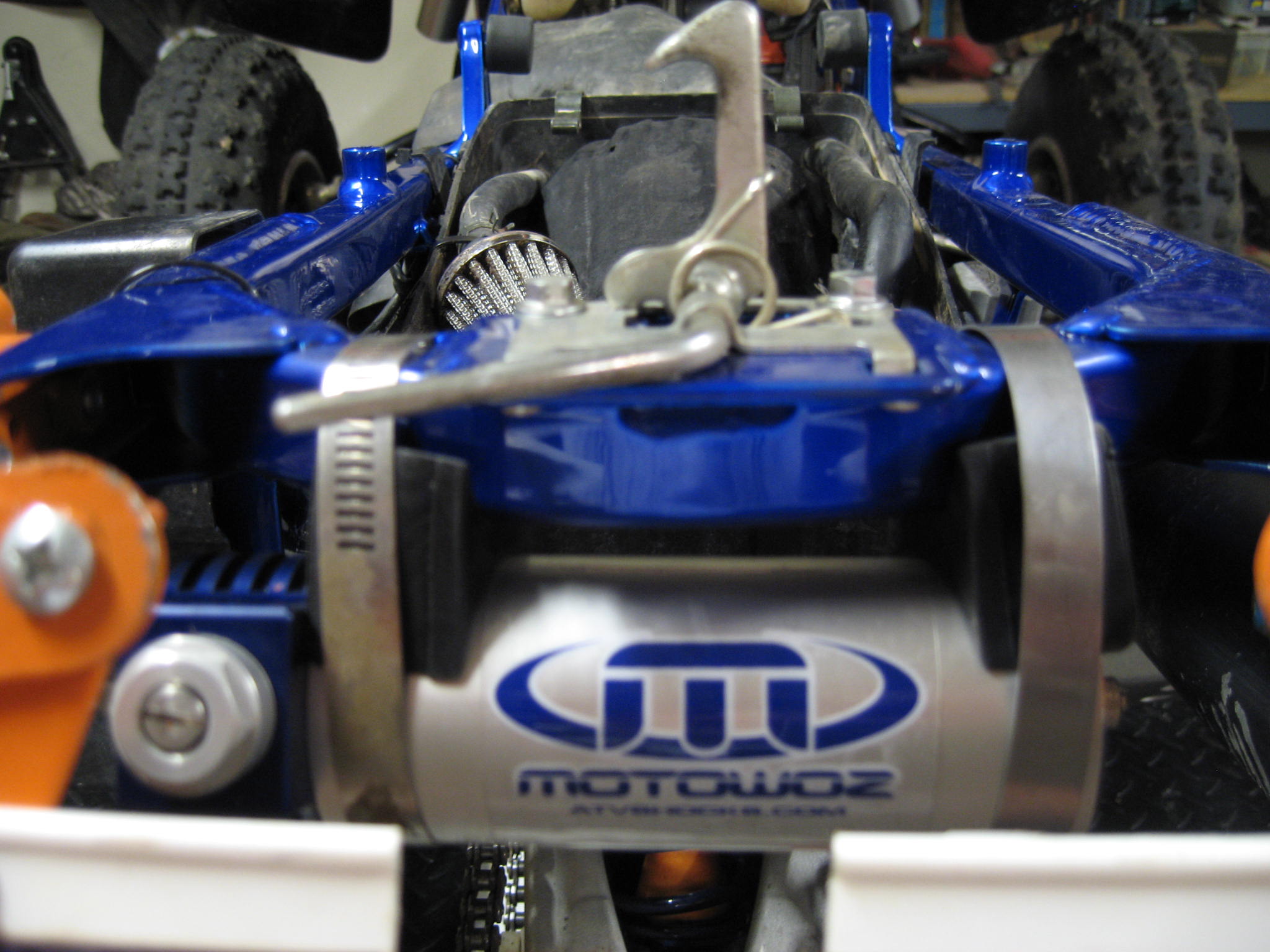

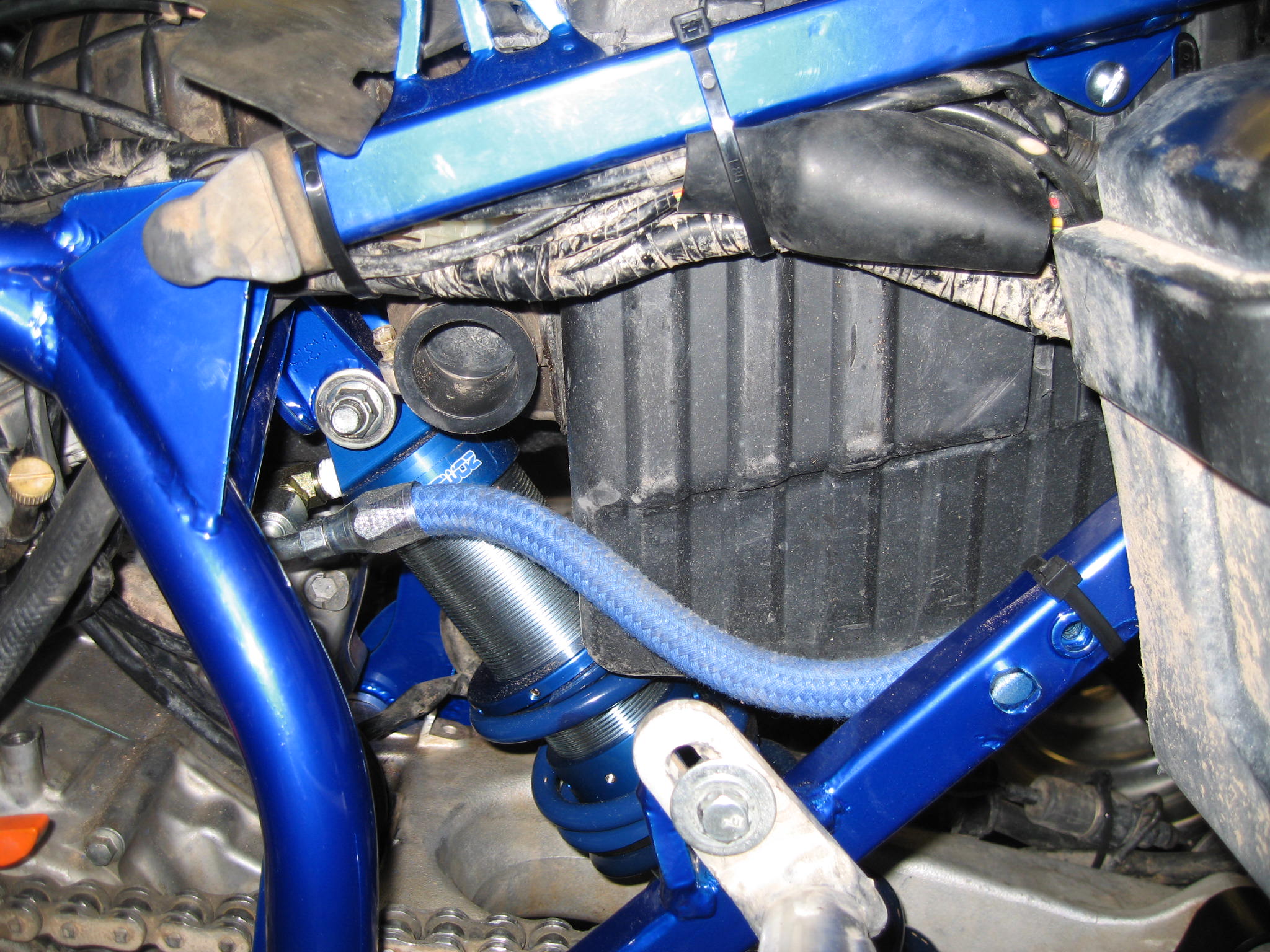

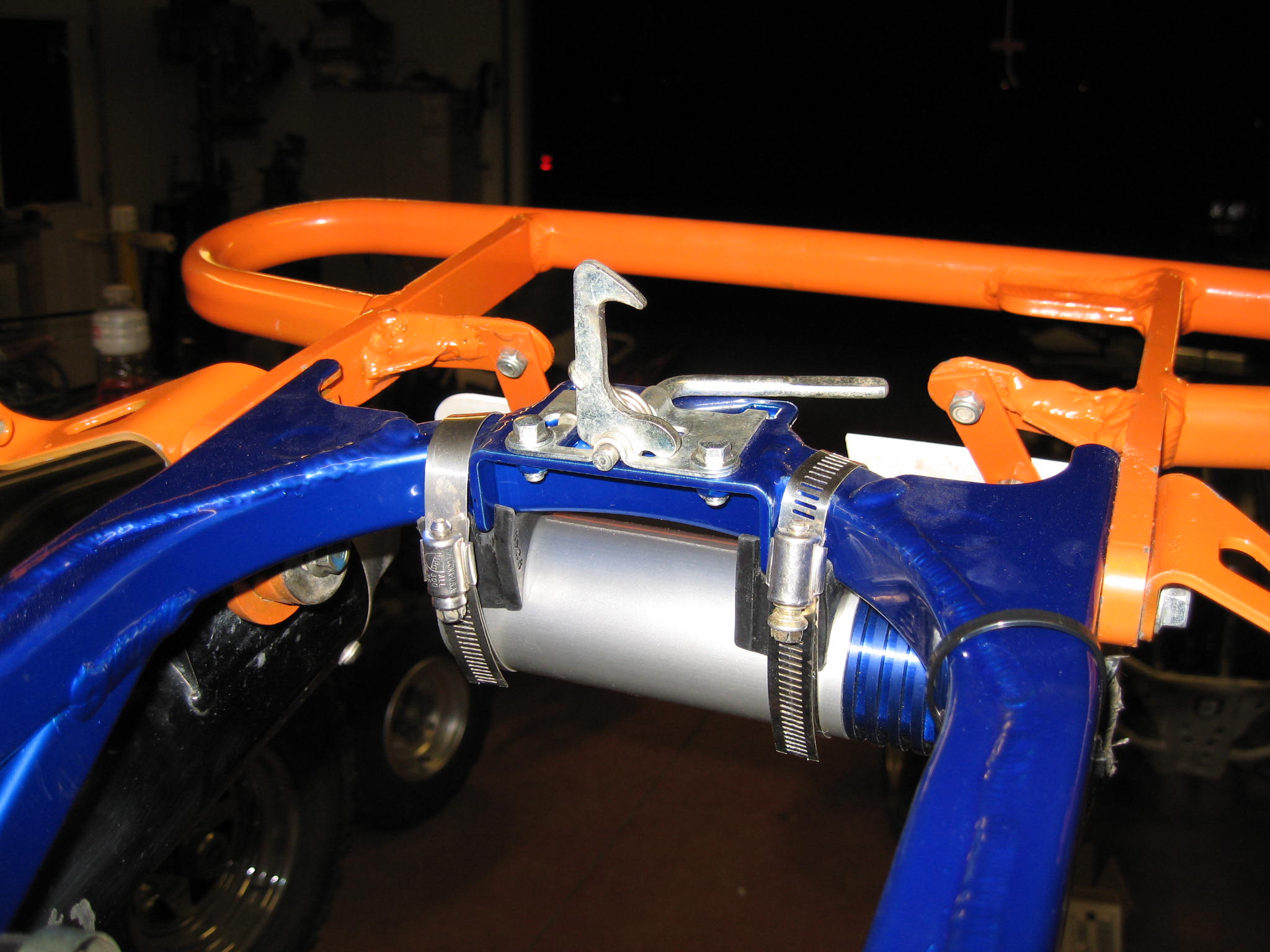

Mounting rear shock reservoir |
|
|
|
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20035.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20037.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20034.jpg) |
![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20038.jpg) |

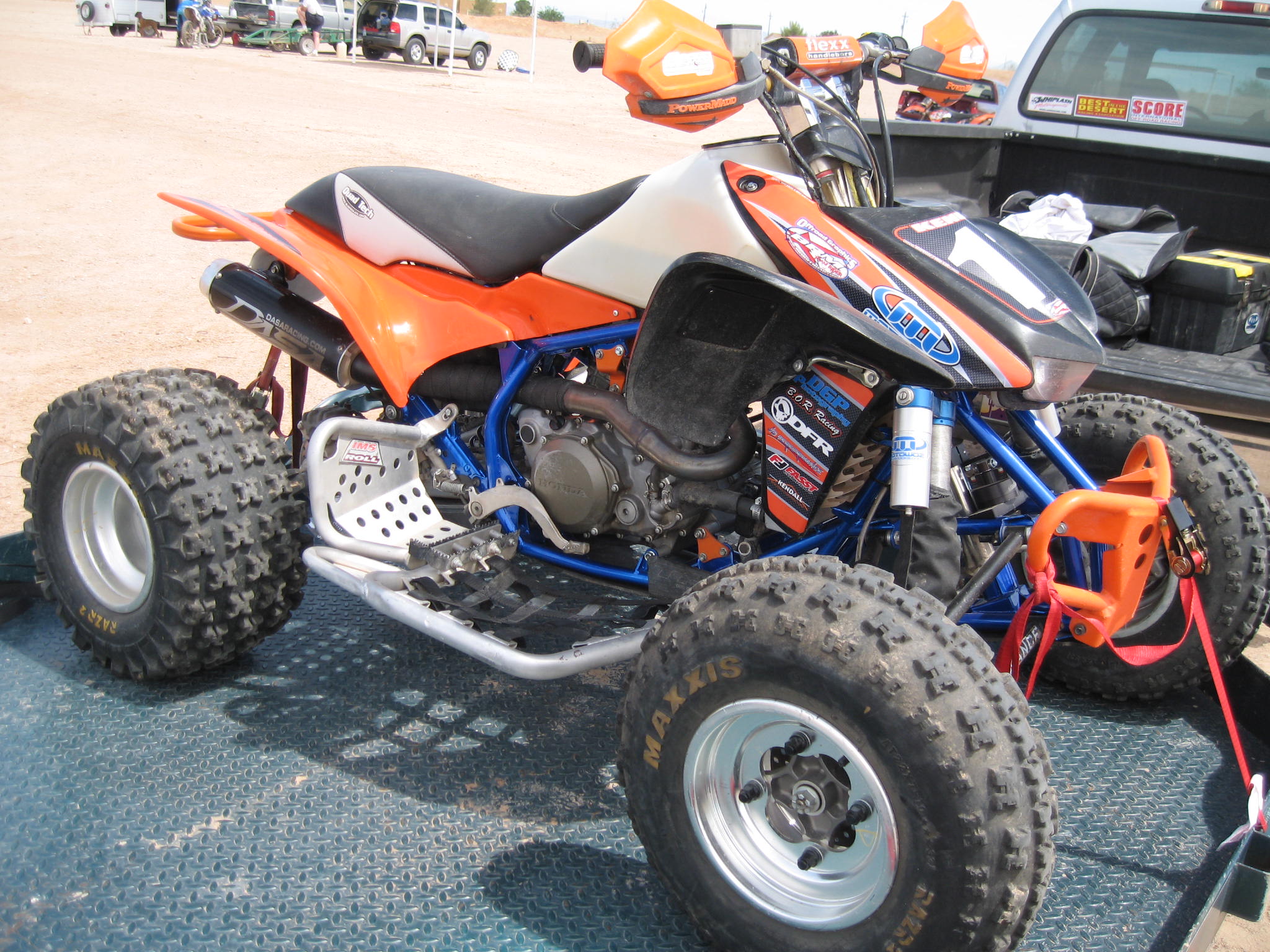

![](../Images/2009/May%2009-frame%20and%20speedworld/thumbs/plumber%20039.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20019.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20020.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20021.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20022.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20027.jpg) |

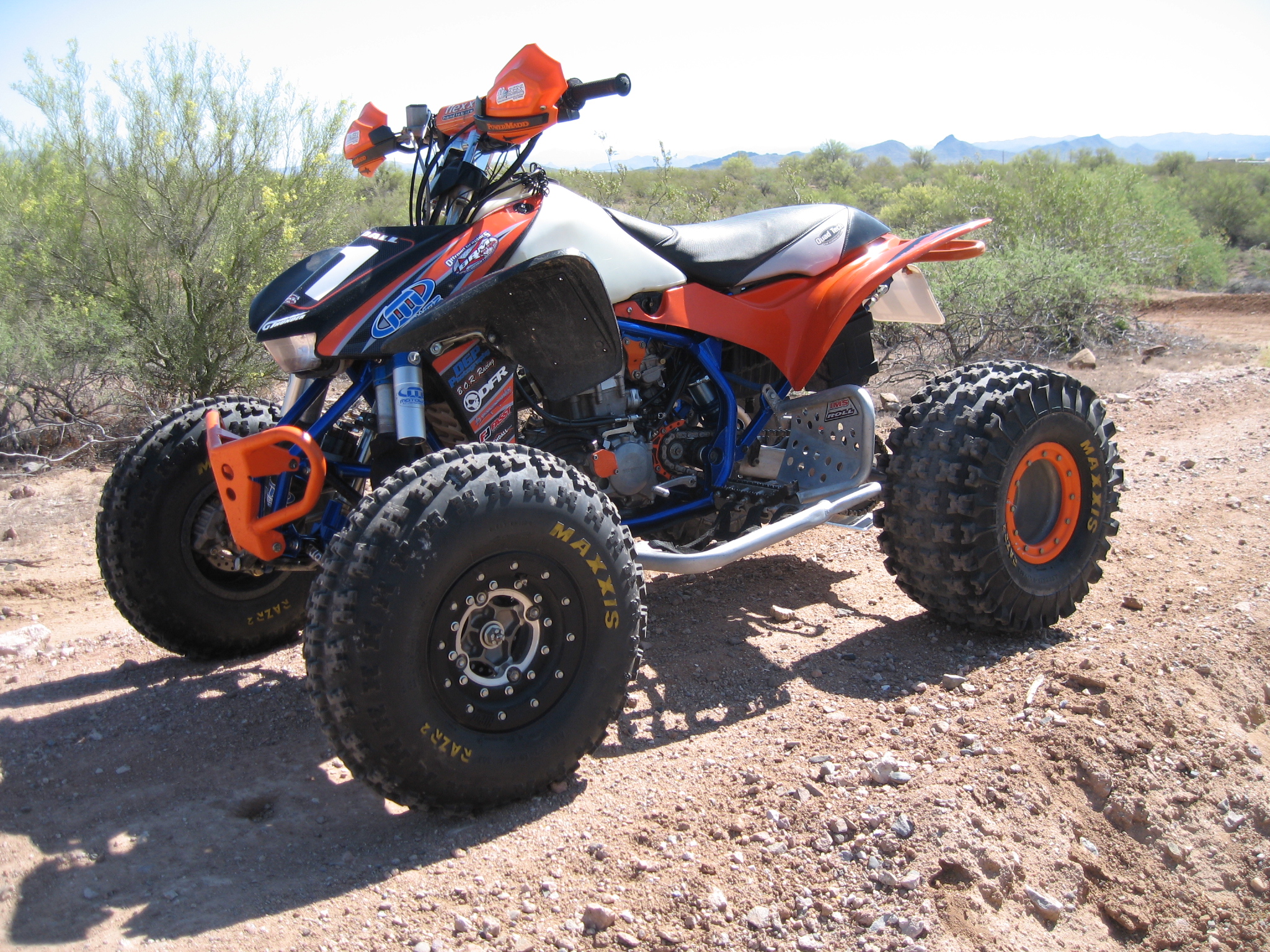

![](../Images/2009/rebuild09/thumbs/done%20025.jpg) |

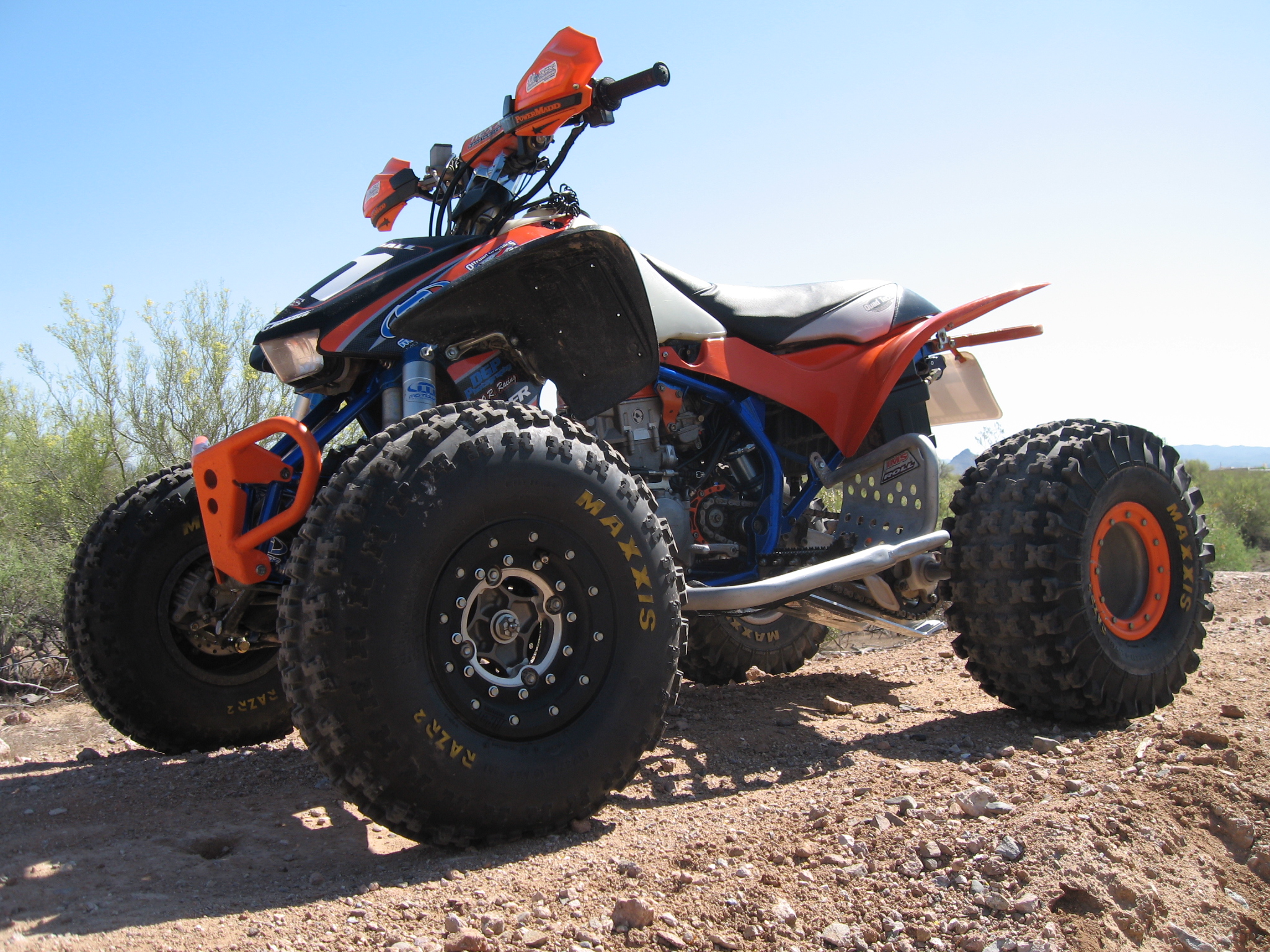

![](../Images/2009/rebuild09/thumbs/done%20026.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20028.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20031.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20032.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20034.jpg) |

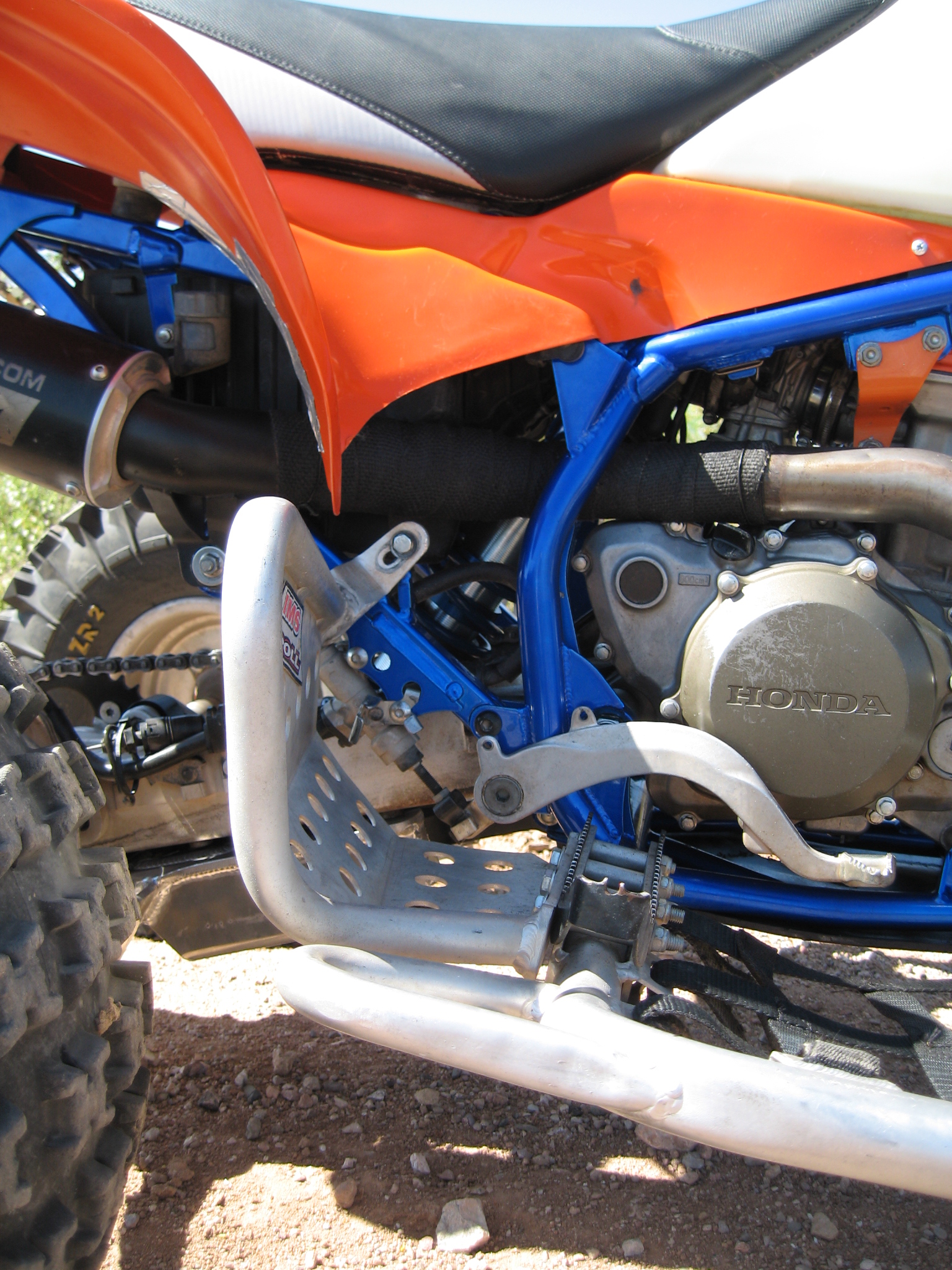

![](../Images/2009/rebuild09/thumbs/done%20035.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20036.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20046.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20048.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20023.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20029.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20030.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20033.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20049.jpg) |
![](../Images/2009/rebuild09/thumbs/done%20050.jpg) |
|
|
|
